00 Root Pass MIG Field Guide
MIG will hide a bad weld better than any other process.
Twenty five pages on running a better bead with a small machine. Settings, the four things your hands control, and how to see inside your own weld.
- Instant download
- Secure checkout
- 30 day guarantee
- Yours to keep
01 Get it
Fourteen dollars. About one spool of wire.
Instant download, no account to create, no subscription.
06 From people who bought it
02 Contents
Fifteen sections. Four things that go wrong.
Heat, travel speed, gun angle and gas coverage. That is the whole list, and the diagnosis table at the back is the same four sorted by symptom.
25 pages · 15 sections · 5 parts · PDF
Gas, wire, polarity and two knobs. Get these right and the arc tells you so out loud.
- Short circuit transfer, and what the sound is telling you
- Gas mixes compared, and why more flow is worse
- Wire size as a heat setting, and the polarity that ruins an afternoon
- A settings chart from 24 gauge to a quarter inch, plus a sixty second dial in routine
Four variables, and every one of them changes the weld.
- Stick out, the hidden amperage knob
- Work angle, travel angle and travel speed
- Push against drag, drawn in cross section
- Stringer, weave, circles and stitch
Reading the bead, aiming at the root, and the hardest welding most home welders ever do.

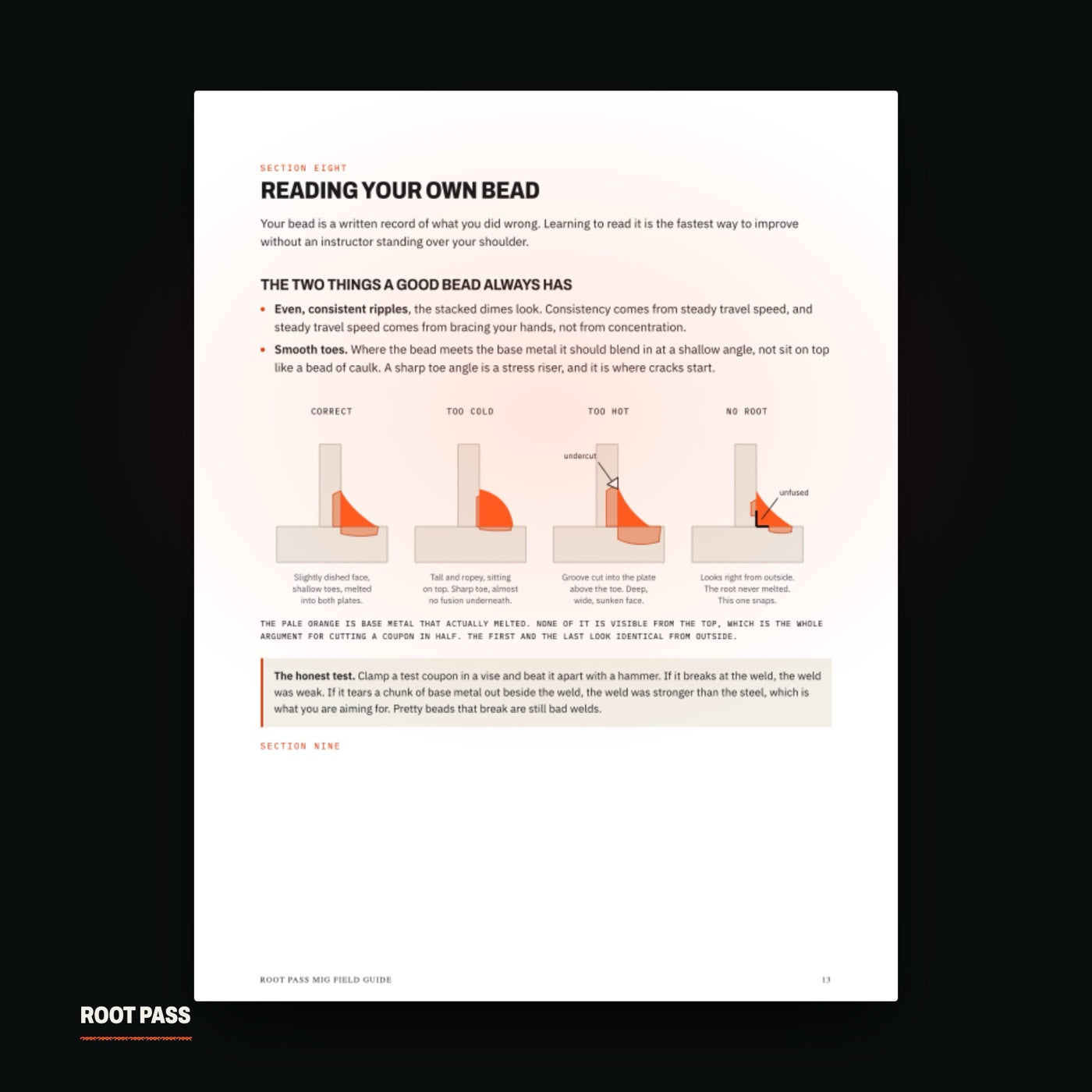

- Four fillet cross sections: correct, too cold, too hot, no root
- Where to aim on the butt, lap, tee, corner and edge
- Thin sheet metal, tacking and the bare hand test
- Plug welds, and aluminized exhaust tube
Twelve problems, most likely cause first.
- Porosity, undercut, burn through and heavy spatter
- Wire stubbing, burn back and erratic feeding
- A bead that looks right and snaps anyway
- Cutting and etching a coupon so you can see the inside
Safety, drills, and one page for the wall.
- Arc eye, fire and fume, and welding on a vehicle
- Five practice drills, in order
- The two habits that separate good welders from bad
- Before you strike, while you weld, if it looks wrong
Thirty days. No hoops.
Read the whole thing. If it does not tell you something you did not already know, reply to the receipt inside thirty days and we refund you in full. You keep the file. We would rather have the feedback than the money.
03 The rest of the shelf
The other three, and the set.
You are looking at MIG. These are the rest of the shelf, and they do not repeat what is in it.
03 Straight answers
Questions we get asked.
It is written for a hobby or home shop welder on a 110 or 220 volt machine running short circuit transfer on mild steel. The technique carries over to bigger machines, but the settings chart is aimed at small ones.
Only in passing. Aluminum on MIG needs a spool gun or a push pull torch and straight argon, and the guide says so, but the depth here is mild steel and sheet.
A PDF, delivered by email the moment the payment clears. No account to create, no app, no subscription. Print it, put it in the truck, keep it.
Reply to the receipt within thirty days and we refund you. You keep the file. We have no interest in money from somebody who did not get anything out of it.
